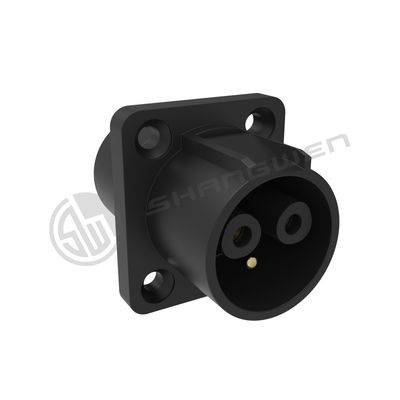

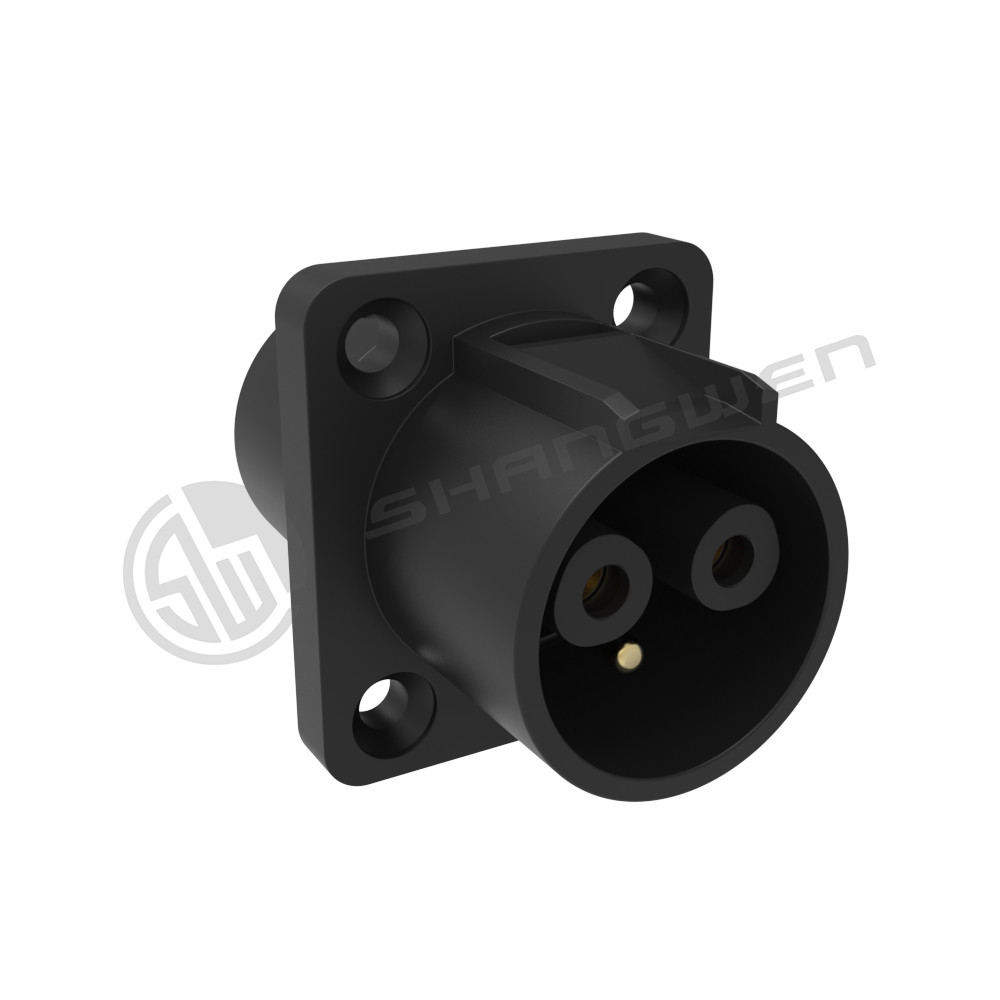

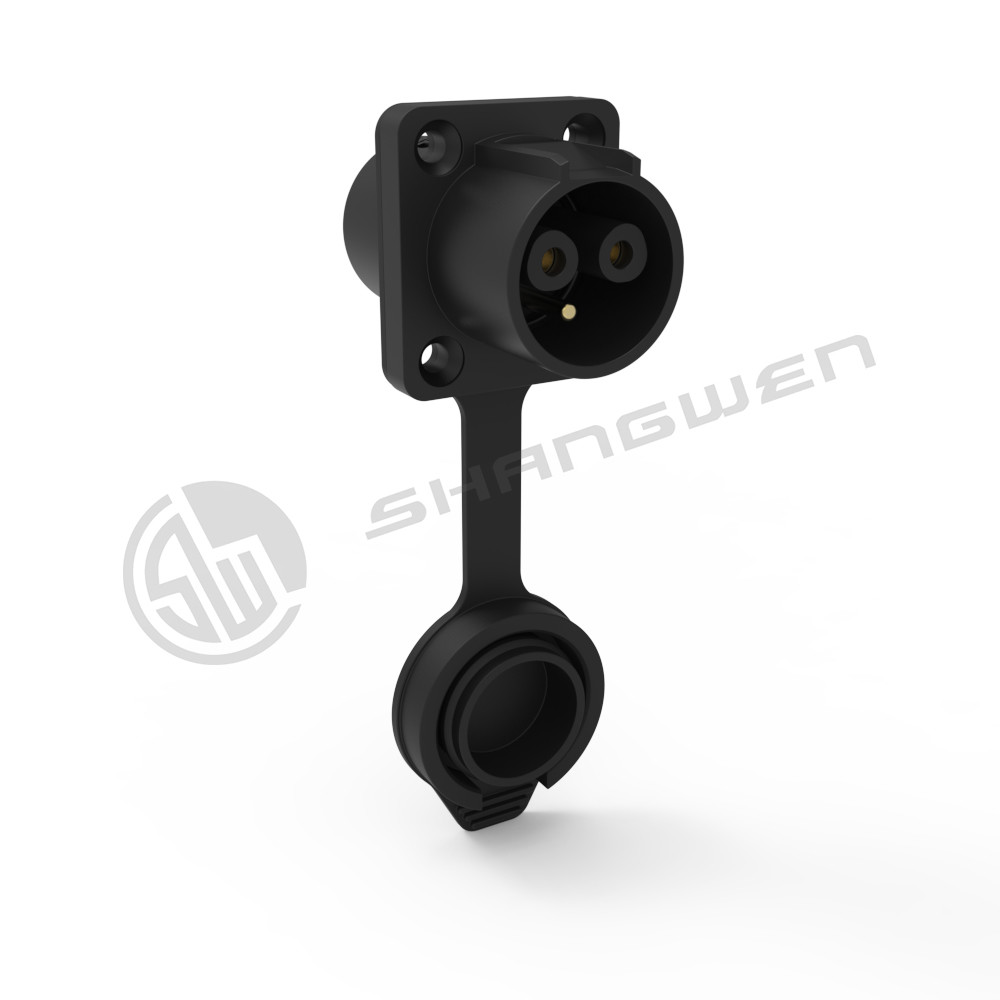

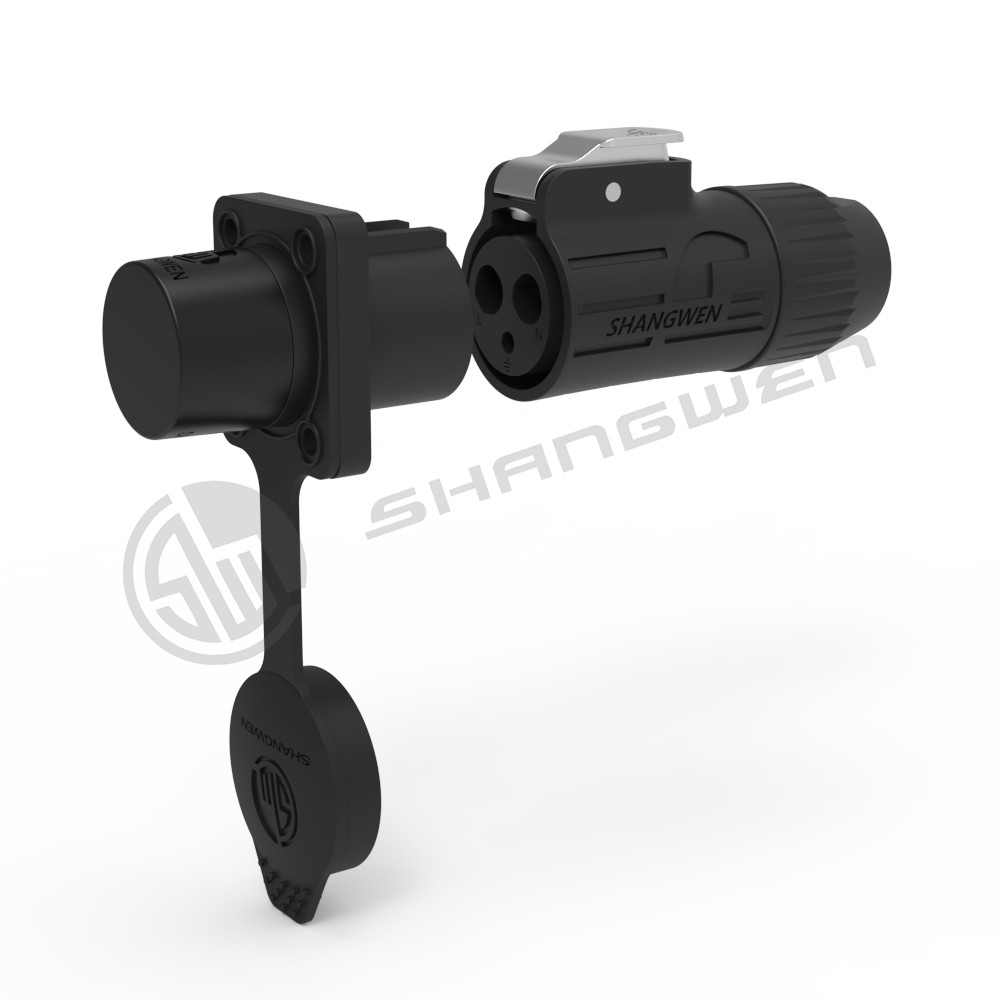

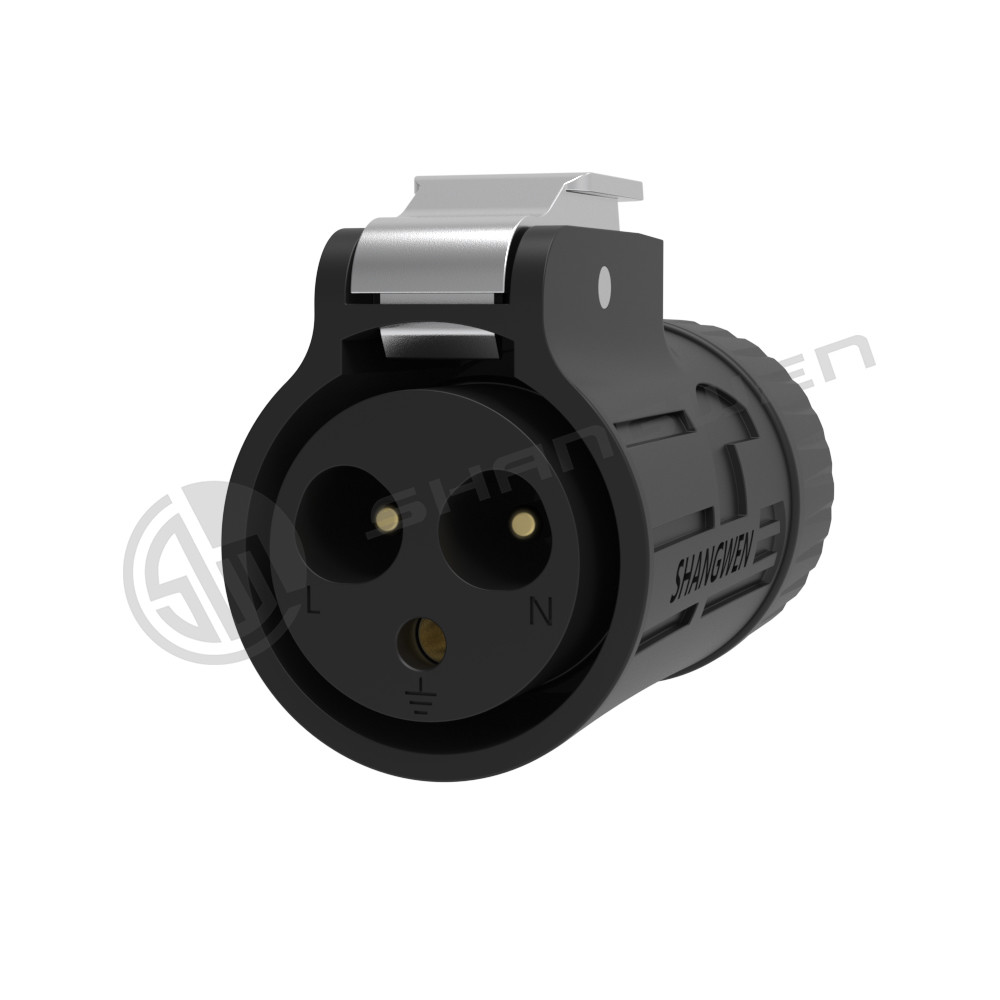

16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display

  • 16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display
  • 16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display
  • 16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display
  • 16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display
Place of Origin Guangdong, China
브랜드 이름 SHANGWEN
Model Number SWF3A
Minimum Order Quantity 10 pieces
가격 CN¥17.16-37.17/pieces

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
IP level ip65 Type led display connector
Application Power Gender Male
Industrial electronics accessories
강조하다

Quick Connect Cable Lockable

,

IP65 Panel Socket Kit

,

LED Display Panel Socket Kit
메시지를 남겨주세요
제품 설명
Products Description
Power connector series-3 core male powercon（Metal material ,card buckle type）
This series is widely used in audio and video connection, lighting, LED display, industrial equipment and other industries.
The enclosure is made of industrial PBT insulation material, which is resistant to pressure, high temperature, corrosion and flame retardant up to UL94-V0.
The inner core is made of copper alloy, which has strong contact stability and can strengthen the control of temperature rise.
The socket is made of zinc alloy with complete electromagnetic and radio frequency interference protection.
The materials used in this series are extremely elegant, and the design of many inner cores meets the diversified industrial needs. Not afraid to apply in all kinds of bad conditions!
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 0
Model : SWF3A-TB ( outdoor use )
☑Semi-metallic style,which can meet the demands of anti-interference,high strength
and high corrosion resistance;
☑Adopt one key press button locking method,plug and play,fast and convenient;
☑Precision waterproof design,with high waterproof level,no fear of wading environment;
☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;
☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof
☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0
☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal
transmission and electrical conductivity
☑Zinc alloy internal structure and base, with complete electromagnetic and radio frequency interference protection
☑Multi-style inner core design to meet the needs of various industries
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65/IP67
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 1
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 2
1.Electrical parameters
Contacts NO.
Φ2.0* 3 pin
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤4mΩ
Withstand voltage
2500V AC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
4mm²
Wire stripping length
φ9-12mm
Type of terminals
Soldering
3.Material and environmental parameters
Shell&insulated parts
PBT
Hardware metal
Zinc alloy
Contacts
Brass with gold-plated
Sealing
Silicone/rubber
Flame-retardant grade
UL94-V0
Temperature range
-30°C to +80°C
Temperature rise
Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level
IP65
4.Size reference (unit /mm)
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 3
Application area
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 4
Company Information
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 5
Patent & Certification
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 6
Exhibition activities
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 7
Packaging reference
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 8
Payment and logistics
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 9
FAQ
16A Male Female Plug Connector Quick Connect Cable Lockable Triple Core Waterproof IP65 Panel Socket Kit for LED Display 10
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
